Compression fittings provide a reliable method to connect copper pipes, eliminating the need for soldering or torch heat. A Copper Compression Union relies on a nut, ferrule, and body to form a tight seal when the nut is tightened with a wrench. Because of that practical design, the Compression Fitting 3/4 and 3/4 Copper Compression Fitting are often chosen by trade installers and home repairers.

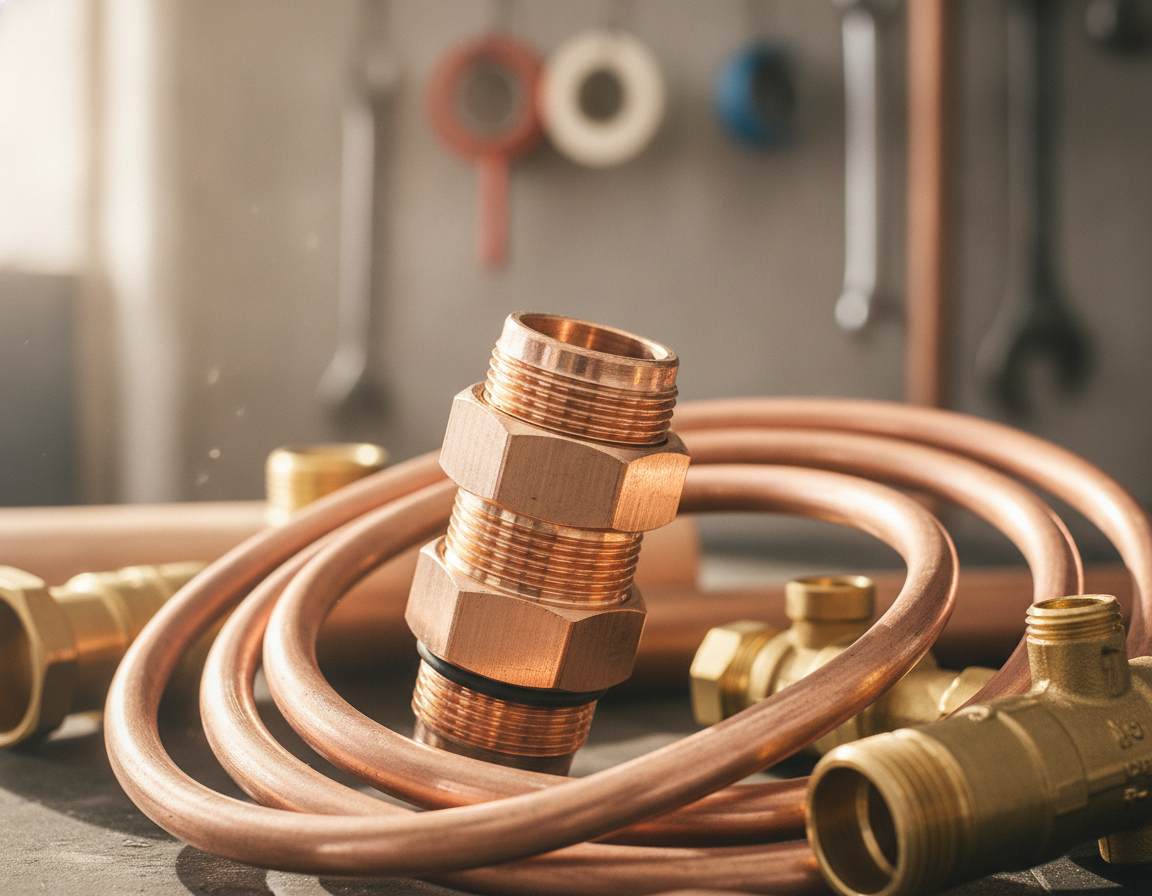

3/4 Compression Fitting
These unions are adaptable, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often carries 3/4 Compression Fitting Copper and 3 4 Compression Fittings in styles such as brass, copper, and stainless steel. As the nut tightens, the ferrule deforms between the tapered body and nut, gripping tubing such as annealed copper or compatible thermoplastic tube.
Key Takeaways
- Copper Compression Union couples copper pipe without soldering.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are widely used sizes.
- Installation Parts Supply typically stocks 3/4 Compression Fitting Copper and 3 4 Compression Fittings.
- Brass bodies and ferrules offer strength and corrosion resistance.
- Tightening the nut with a wrench presses the ferrule and forms a leak-tight seal.
Copper Compression Union Design And Components Explained
The Copper Compression Union is a three-piece design that connects tubing without soldering. It is frequently chosen in plumbing, HVAC, refrigeration, gas distribution, and instrumentation. The reason is simple: the union delivers a tight mechanical compression seal. The 3 4 Copper Compression Union is popular in residential and light-commercial installations.
What A Copper Compression Union Is And Where It’s Used
A compression union couples two pipes by compressing a ring around the tube as the nut tightens. It is useful for quick repairs, service loops, and tight spaces where an open flame is impractical. The 3/4 Copper Compression Fitting is ideal for common mains, branch lines, and appliance feeds without brazing.
Body, Ferrule Olive, And Nut Components
The union body provides the threaded section that receives the nut. The ferrule, also called an olive, bites against the pipe and fitting body as the nut is tightened. The nut threads onto the body and applies the compressive force. Proper seating of the ferrule is essential for a leak-free joint and for serviceability in the field.
Copper Union Materials: Copper, Brass, Stainless Steel, And Plastics
Brass unions offer ductility and corrosion resistance, making them compatible with copper pipe for water and gas. Stainless steel adds additional strength for high-pressure, high-temperature, or demanding service. Copper-to-copper unions give uniform thermal expansion and fit standard tubing sizes. Plastic ferrules and fittings, like acetal or nylon, are used in low-pressure domestic systems where chemical resistance and nonmetallic connections are desired.
Copper-To-Copper Unions And Galvanic Corrosion Risk
Matching metals limit galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union, or a brass body paired with copper pipe, helps reduce active corrosion at the connection. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Benefits Of Using Compression Fittings For Copper Pipes
Compression fittings deliver a quick, safe alternative to soldered joints for copper pipes. They remove the need for open flame work, which reduces fire risk around insulation, drywall, framing, or older structures. A Compression Fitting 3/4 provides a reliable seal without heat, making it ideal for retrofit jobs and confined locations.
Installation is usually simple across many fitting brands. First place the nut onto the tube, then add the ferrule. Next, insert the tube fully and hand-tighten before a final wrench turn. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is one of the biggest advantages of compression unions. Many tradespeople choose 3 4 Compression Fittings because assemblies can be loosened or repositioned without cutting pipe. Although ferrules often need replacement after disassembly, the overall joint may remain serviceable, saving time during repairs, changes, or modifications.
Compression fittings can be used in many systems beyond ordinary household plumbing. They are used in gas distribution, HVAC refrigeration lines, and instrumentation where leak integrity and ease of maintenance are critical. When a compact, no-flame connection is needed, a Compression Fitting 3/4 or 3/4 Compression Fitting can be a practical choice.
| Feature | Compression Fitting | Solder Joint |
|---|---|---|
| Heat needed | No open flame | Yes |
| Install speed | Rapid | Slower |
| Serviceability | Easy to disassemble | Fixed joint |
| Confined-space suitability | Strong | Limited |
| Usual applications | Water lines, gas, HVAC, and instrumentation | Permanent water runs and sealed joints |
How To Choose The Right Size And Material
Ensuring a plumbing joint’s reliability starts with selecting the correct size and material. Before making a purchase, verify the pipe’s outside diameter and the fitting’s designation. Misinterpretation of terms like 3/4 Compression Fitting can cause leaks and costly repairs.
When selecting fittings, it is essential to understand the difference between nominal size and outside diameter OD. Search for SKU labels such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. This helps ensure the ferrule seats correctly on your copper tubing.
Common SKU keywords to look for
Retail listings and manufacturer catalogs often list parts under various names. Look for clear labeling and adherence to standards. Common search terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Ensure the product description aligns with your pipe’s OD or nominal size.
Material choices
Brass is often preferred for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or 3 4 Union Brass is well matched for many residential and light-commercial installations.
Copper unions are preferred when matching metals, controlling thermal expansion, and reducing galvanic activity. A 3/4 Compression Fitting Copper provides a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is selected for applications requiring higher pressure or resistance to aggressive chemicals. Compared with brass and copper, it provides higher strength and stronger chemical resistance.
Acceptable uses for plastic fittings
Acetal or nylon compression fittings may be acceptable for low-pressure domestic water lines or situations where non-conductivity is needed. However, they have drawbacks, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Comparison of common coupling materials
| Fitting Material | Typical Use | Relative Strength | Notes |
|---|---|---|---|
| 3/4 Union Brass in brass | Water lines, gas service, and general plumbing | Good | Cost-effective, compatible with copper |
| Copper 3/4 Compression Fitting Copper | Refrigeration, plumbing, and same-metal joints | Reliable for standard service | Reduces galvanic risk and matches copper tube |
| Stainless steel | High pressure, high temp, corrosive fluids | High | Excellent for harsh industrial applications |
| Plastic, including acetal or nylon | Low-pressure domestic water | Low-medium | Non-conductive, limited temp/chem resistance |
Sizing tip
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
Best Installation Practices For A Leak-Free Union
Begin with clean, straight copper tubing. Utilize a pipe cutter for a precise square cut. Remove burrs with a deburring tool, reamer, or fine sandpaper. A smooth, square end is essential to prevent ferrule damage and ensure a reliable seal when installing 3/4 Compression Fittings.
Assemble components in the correct order. Place the compression nut on the pipe with threads facing outward, followed by the ferrule. Insert the pipe fully into the union body until it bottoms out. This step is essential to avoid gaps that can cause leaks when using a 3 4 Brass Compression Coupling or a 3/4 Compression Fitting Copper.
Hand-tighten the nut first to align parts. Then, use two wrenches: one to hold the fitting body steady, the other to turn the nut. Follow the manufacturer’s recommended number of wrench turns after finger-tight. Over-tightening can deform the ferrule or crush the copper tube, which shortens the life of a 3/4 Copper Compression Fitting.
Do not reuse ferrules after they have been compressed. Always fit a new ferrule and nut for each joint. Avoid installing compression joints in areas exposed to constant vibration or repeated movement. These conditions can work loose fittings like 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Know the pressure and temperature ratings for the chosen fitting. Before installation, review the product datasheet or packaging. After assembly, restore pressure slowly and inspect the joint for leaks. If minor weeping appears, tighten incrementally. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Compression Union Maintenance, Replacement, And Troubleshooting
Begin by shutting off the water supply and relieving pressure. Use two wrenches to hold the fitting body while turning the compression nut counter-clockwise. If the nut is seized, apply penetrating oil and allow it to soak before trying to remove it.
Safe removal of an existing compression union
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old, back off slowly to avoid sudden leaks or pipe damage.
When to replace ferrule and nut instead of the full union
Replace the ferrule and nut when the fitting body looks sound and the sleeve shows wear or deformation. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Signs of failure: weeping, corrosion, or deformed ferrules
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration may gradually loosen compression unions and cause slow leaks over time.
Stuck ferrule removal tips for copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. Use a ferrule puller if available. If the tube is nicked, flattened, or damaged, cut the end square again, deburr it, smooth it, and reinstall with a new ferrule and nut.
Longevity comparison: compression unions and soldered joints
Under static conditions, soldered joints usually provide a more permanent seal and may last longer. Compression unions provide ease of service and eliminate the need for flame, making them ideal for repairs and tight spaces. Where vibration or long-term mechanical stress is present, soldered joints often outperform compression fittings.
| Fitting Type | Ease Of Service | Expected Service Life | Ideal Application |
|---|---|---|---|
| 3 4 Compression Union Brass | Can be disassembled; ferrule may need replacement after several cycles | About 5–15 years based on service conditions | Repairs, tight spaces, no-flame requirements |
| Brass 3/4 Union | Moderate; replace nut and ferrule if body is intact | Typically 5–15 years | Accessible general plumbing repairs |
| 3/4 Compression Fitting | Short-term serviceable with new ferrules recommended | Varies by material; brass commonly 7–20 years | Heat-free repairs and retrofit work |
| 3/4-inch compression connector | Simple to install, though ferrule reuse should be avoided | Depends on environment; shorter under vibration | Home plumbing and retrofit repairs |
| 3/4 Compression Fittings soldered comparison | Not serviceable once soldered; highly durable | Often 20+ years with proper installation | Permanent pipe runs and high-stress installations |
When buying spare parts, compare compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting components from manufacturers such as Mueller, Nibco, or Watts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Final Thoughts
Copper compression unions provide a practical way to join copper tubing without soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. That makes them useful where heat is impractical or where future serviceability matters.
When choosing materials, match the fitting to the application: brass or copper for potable systems and lower galvanic risk, stainless steel for harsh or high-stress service, and approved plastics where they are permitted. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is easy: inspect for weeping or corrosion, replace ferrules when needed, and avoid overtightening to extend union life. For parts such as a 3 4 Copper Compression Union or 3 4 Union Brass, confirm availability and specifications through Installation Parts Supply. This helps ensure compatibility, proper sizing, and correct installation guidance.
